Description

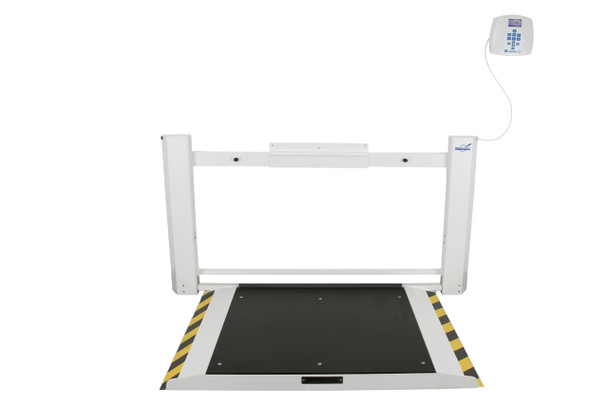

The Health o meter 2920KL-AM ADA-compliant wheelchair scale features a 1,000 lb capacity, Platinum Corada certification, antimicrobial surface protection, a space-saving wall-mounted fold-up design, and EMR connectivity via USB or optional Pelstar® wireless technology.
Features
- Handles up to 1,000 lb / 454 kg
- Fully ADA-compliant and Platinum certified by Corada, meeting 2024 US Access Board MDE Standards
- Antimicrobial surface treatment built into the platform to help reduce the spread of pathogens between patients
- Wall-mounted and folds flat to just 4.7 inches from the wall — ideal for hallways and smaller exam rooms
- Spacious 40" x 32" platform accommodates most wheelchair footprints comfortably
- Low 1⅗-inch platform height paired with 1:8-slope ramps makes rolling patients on and off as effortless as possible
- 2-inch edge protection on both the platform and ramps adds a safety buffer for wheels during access
- Recessed handle and no-pinch-point design protect caregivers' hands when lifting and lowering the platform
- Display installs on either the left or right side — adaptable to the room layout and caregiver workflow
- Reads to the nearest 0.2 lb / 0.1 kg for clinically reliable results
- Automatic BMI calculation
- Switches instantly between pounds and kilograms, with an optional lockout to enforce a single unit
- Pre-tare, hold/release, reweigh, and recall functions streamline the weighing process in busy clinical settings
- Everlock® permanent unit lock prevents accidental unit changes after configuration
- Parent/child weighing function makes it easy to weigh patients who cannot stand independently
- High-contrast color TFT-LCD screen is easy to read in a variety of lighting conditions
- Connects to EMR/EHR systems via USB (optional Pelstar® wireless technology upgrade)
- Powered by 100-240V universal adapter or with 6 D batteries
Specs
Technical Specs
| Platform Size | 40" x 32" x 1⅗" (1016 mm x 819 mm x 38 mm) |
|---|---|
| Ramp Size | 12¼" W x 32" D (318 mm x 813 mm) |
| Footprint (Unfolded) | 77½" W x 37⅞" D x 37" H |
| Footprint (Folded) | 77½" W x 4¾" D x 37" H |
| Max Load | 1,000 lb (454 kg) |
| Accuracy | 0.2 lb / 0.1 kg |
| Display | 2¾" x 1½" High-Contrast Color TFT-LCD; 3/8" digit size |
| Connectivity | USB (Optional Pelstar® Wireless Technology) |
| Power | 100–240V AC Adapter (ADPT30, included) 6 D Batteries (not included) |
| Product Weight | 118 lb (53.5 kg) |
| Certifications | ADA Compliant – Platinum Certified by Corada |
| Warranty | 2-year limited manufacturer warranty |
Shipping
Shipping
Due to the size and weight, this item ships via freight LTL tractor-trailer. (Think 18 wheeler). Shipping is not included.
