Description

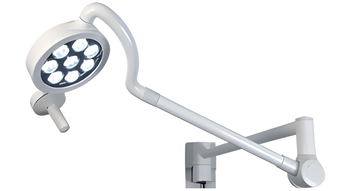

The Medical Illumination MI-1000 LED Surgery Light delivers up to 100,000 lux with excellent shadow control for procedure rooms and surgical cases. Its wall mount and long arms cover the full table without taking up floor space.
Features
- Wall Mount: Keeps the floor clear around the procedure table
- Brightness: Up to 100,000 lux at 1 meter, with five brightness levels
- Shadow Control: Large-diameter LED array reduces shadows from hands and instruments
- Endo Mode: Hold the dimming button for 3 seconds to dim the light for endoscopic procedures
- True Color: CRI of 97 for accurate tissue color
- Reach: Long arms give an 11-foot circle of reach
- Sterile Control: Sterilizable handle switch for on/off and dimming; head rotates 300°
- Cool Operation: Near-zero heat from the light beam and head housing, for patient and clinician comfort
- Long LED Life: Rated for 50,000 hours, so there are no bulbs to stock or change
- Energy Savings: Uses about half the energy of traditional halogen lights
- Battery Backup: Optional battery backup kit keeps the light on for up to 7 hours during a power outage
- Models: 061522 (previously Bovie XLD-WM)
Specs
Technical Specs
| Model Number | 061522 |
|---|---|
| Previous Bovie Model | XLD-WM |
| Light Intensity | 100,000 lux (9,290 footcandles) |
| Light Source | LED (54 W) |
| Rated LED Lifespan | 50,000 hours |
| Number of LED's | 36 |
| Light Color Temperature | 4,300° Kelvin |
| Color Rendering Index | 97 |
| Light Field Diameter | 8.3" (21 cm) |
| Focal Length | 39.4" (1 m) |
| Depth of Illumination | 24" (61 cm) |
| Dimming Levels 5 | Level 5: 100,000 lux (9,290 footcandles) Level 4: 87,500 lux (8,129 footcandles) Level 3: 75,000 lux (6,968 footcandles) Level 2: 62,500 lux (5,806 footcandles) Level 1: 50,000 lux (4,645 footcandles) |
| Light Head Weight | 14.6 lb (6.6 kg) |
| Light Head Diameter | 18" (45.7 cm) |
| Arm Rotation | 540° |
| Light Head Rotation | 300° |
| Power Supply Circuit | 100 - 240 VAC, 50 / 60 Hz |
| Power Handling Capacity | 100 W |
Documents
User Guides
Shipping
Shipping
Due to the size and weight, this item ships via freight LTL tractor-trailer. (Think 18 wheeler).
